Non-fried dried noodle production line

(1) The noodle sheets are moisturized and matured, and the flour protein fully absorbs water.
(2) Multiple layers and multi-temperature zones with independent noodle steaming space, fully gelatinized and high degree of gelatinization, the steam pressure is automatically controlled by an electric valve.
(3) Patented design for drying conveying, with a sprocket positioning device, the drying operation of the noodle box is stable, and the chain and noodle box will not drop.

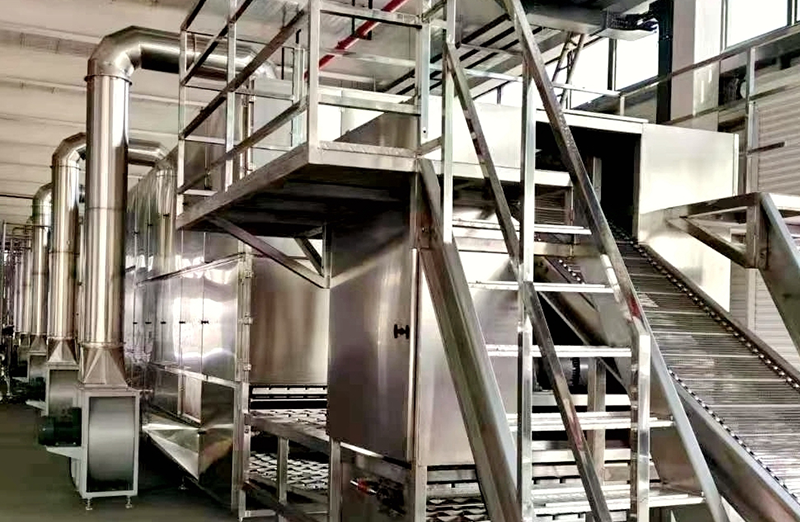

(4) Multi-temperature zone dryer with automatic temperature control.
(5) Hot air circulation drying, energy saving, and high efficiency.
CONTACT US Nantong Chang Hao Mechanical Manufacturing Co., Ltd.

Technical Characteristics

Model Capacity/24h Dimensions(L*W*H) Power Steam consumption
ZHF-5W(300)-B 30000~ 50000Pcs 70m*6m*6m 80kW 1000Kg/h
ZHF-10W(500)-B 60000~100000Pcs 80m* 6m* 6m 100kW 1800Kg/h
ZHF- 15W(600)-B 110000~160000Pcs 100m*8m*7m 130kW 2600Kg/h
ZHF- 20W(800)-B 170000~200000Pcs 125m*8m*7m 170kW 3750Kg/h
ZHF-24W(1000)- B 210000~240000Pcs 140m*8m*7m 200kW 4800Kg/h

Specifications

Flour sieving →flour air convey →double shaft mixing →dough ripen →compound rolling→continuous rolling→slttig and cutting→continuous steaming→cutting & folding ( spraying stretch & cutting flling case )→hot air drying→cooling→distribution→packing conveying→packaging
PREV: Non-fried instant noodle production line
NEXT:Non-fried hand arranged noodle production line

Recommended Products

KEEP IN TOUCH

SUBMIT
About Us
Nantong Chang Hao Mechanical Manufacturing Co., Ltd.
Nantong Chang Hao Mechanical Manufacturing Co., Ltd.

Nantong Chang Hao Mechanical Manufacturing Co, Ltd. is a modern science and technology enterprise integrate R&D, design, manufacture, sales, service and import & export business. As a famous China Non-fried dried noodle production line Manufacturers and Non-fried dried noodle production line Suppliers, We have a fried instant noodle production line, a non-fried noodle production line, specialty noodle production line, short cut pasta and spaghetti production line, rice & bean/potato vermicelli production line, rice noodle production line and snack noodle production line, with more than 30 varieties of products.

Since the establishment of the company, nearly one hundred production lines of various types have been exported to dozens of countries and regions in Europe, North America, South America, the Middle East, Southeast Asia, and Africa. Excellent quality and after-sales service have been recognized and appreciated by customers at home and abroad.

Our company has successively reached a strategic partnership with Uni-President Enterprise and the Swiss Buhler Group, the cooperation with the world's top groups has brought high-end equipment manufacturing standards and specifics to our company, and also become the basis for our company to enhance the international competitiveness of our products. important support.

In more than 20 years of development, Nantong Changhao's technical team has worked tirelessly. continuously innovated, and kept improving. The advanced technical equipment designed and developed has successively obtained national high-tech enterprise certification, CE certification, and several patent certificates.

Certificate Of Honor
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
  • Certificate
News
Industry knowledge
What are the advantages of the hot air circulation drying technology used in custom non-fried dried noodle production line?
The hot air circulation drying technology used in the custom non-fried dried noodle production line is an efficient drying technology that is widely used in various industrial fields. It plays an important role in food processing, chemical industry, pharmaceutical and other industries. This technology accelerates the drying process of products by using hot air circulation, providing a reliable guarantee for the efficient operation of the production line. Let’s take a closer look at how hot air circulation drying technology works and its advantages over traditional drying technology.
Understanding the implementation steps of hot air circulation drying technology is crucial to our understanding of its working principle. In this process, hot air needs to be generated first. The outside air is usually heated to a certain temperature through a heating device, such as a heating resistance wire or a burner. This temperature is usually set according to the drying requirements of the product. The heated hot air is then sent into a drying chamber or drying equipment, usually by a fan or blower. The hot air is recycled through the channels or pipes inside the equipment, filtered by the filter, heated again and sent back to the drying room. This circulation can effectively utilize hot air, thus improving energy efficiency.
In contrast, traditional drying technology usually uses a one-time discharge of hot air, which causes a lot of energy waste and increases production costs. The hot air circulation drying technology effectively reduces energy waste and saves energy costs by recycling heat energy, which has positive significance for the sustainable development of enterprises.
In addition to the advantages of energy saving, hot air circulation drying technology also has other important advantages in the drying process. First of all, because the hot air circulates evenly in the drying chamber, it can ensure that the surface of the product is evenly heated. This is crucial to ensure drying consistency and quality stability of the product. Traditional drying technology may have problems with local overheating or uneven drying, while hot air circulation drying technology can effectively solve these problems.
Secondly, hot air circulation drying technology has fast drying speed because this technology can provide higher hot air flow rate and temperature. The heated hot air flows through the channels or pipes inside the equipment in the drying chamber, effectively taking away the moisture on the surface of the product, thereby accelerating the drying speed. This is of great significance for improving production efficiency and shortening the production cycle, allowing enterprises to respond to market demand more flexibly.
In addition, hot air circulation drying technology is also environmentally friendly. It adopts a closed-loop system, which reduces the emission of heat energy and water and reduces environmental pollution by recycling heat energy. This is in line with today's society's requirements for environmental protection and is conducive to enterprises establishing a good social image and achieving sustainable development.
